Варисторы VCR Hitano |
32D series (диаметр 32мм) |
| Part Number |
Maximum Allowable Voltage |
Varistor Voltage |
Clamping Voltage (MAX.) |
Maximum Peak current (8/20µs) |
Maximum Energy
(JOULE) |
Typical Capacitance (Reference) |
T(max.) |
| Standard |
AC (V) |
DC (V) |
V 1mA (V) |
VC (v) |
IP (A) |
1 time (A) |
2 time (A) |
(10/1000µs) |
@1KHz (pf) |
mm |
| VCR32D201K |
130 |
170 |
200(185 - 225) |
340 |
200 |
25000 |
20000 |
250 |
5200 |
6.2 |
| VCR32D241K |
150 | 200 | 240(216 - 264) | 395 |
290 | 5100 |
6.4 |
| VCR32D271K |
175 | 225 | 270(243 - 297) | 455 |
300 | 4800 |
6.6 |
| VCR32D331K |
210 | 275 | 330(297 - 363) | 550 |
360 | 4300 |
6.9 |
| VCR32D361K |
230 | 300 | 360(324 - 396) | 595 |
380 | 3900 |
7.1 |
| VCR32D391K |
250 | 320 | 390(351 - 429) | 650 |
400 | 3200 |
7.3 |
| VCR32D431K |
275 | 350 | 430(387 - 473) | 710 |
430 | 3100 |
7.5 |
| VCR32D471K |
300 | 385 | 470(423 - 517) | 775 |
460 | 2800 |
7.8 |
| VCR32D511K |
320 | 415 | 510(459 - 561) | 845 |
510 | 2700 |
8.0 |
| VCR32D621K |
385 | 505 | 620(558 - 682) | 1025 |
570 | 2400 |
8.7 |
| VCR32D681K |
420 | 560 | 680(612 - 748) | 1120 |
600 | 2200 |
9.0 |
| VCR32D751K |
460 | 615 | 750(675 - 825) | 1240 |
620 | 2000 |
9.4 |
| VCR32D781K |
485 | 640 | 780(702 - 858) | 1290 |
660 | 1900 |
9.6 |
| VCR32D821K |
510 | 670 | 820(738 - 902) | 1355 |
700 | 1800 |
9.8 |
| VCR32D911K |
550 | 745 | 910(819 - 1001) | 1500 |
750 | 1300 |
10.4 |
| VCR32D951K |
575 | 765 | 950(855 - 1045) | 1570 |
780 | 1200 |
10.6 |
| VCR32D102K |
625 | 825 | 1000(900 - 1100) | 1650 |
810 | 1100 |
11.2 |
| VCR32D112K |
680 | 895 | 1100(990 - 1210) | 1815 |
910 | 1000 |
11.8 |
| VCR32D122K |
750 | 990 | 1200(1080 - 1320) | 1980 |
960 | 920 |
12.3 |
| VCR32D142K |
880 | 1140 | 1400(1200 - 1540) | 2310 |
1020 | 800 |
13.3 |
| VCR32D162K |
1000 | 1280 | 1600(1400 - 1760) | 2640 |
1080 | 700 |
14.3 |
 |

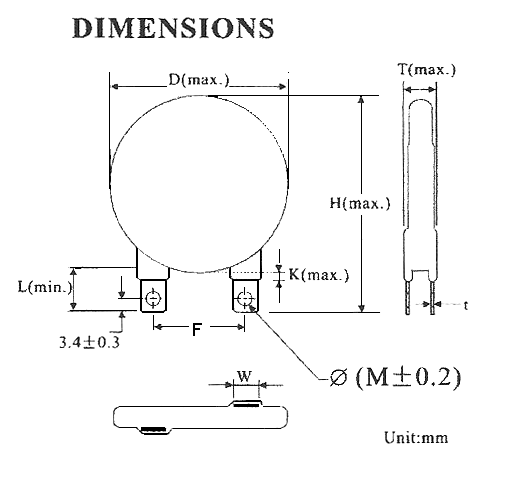

D(max.)
H(max.)
T(max.)
F(±0.5)
t(±0.1)
L(min.)
K(max.)
W(±0.5)
∅(M3±2) |
38
56.3
см. Таб.
25.4
0.5
16.5
3.18
7.0
3.8 |
температура эксплуатации: - 40°C до +85°C
температура хранения: - 40°C до +125°C |
|
